标题: 联想ThinkPad X301 介绍及评测(2008.09.21) [打印本页]
作者: domingo    时间: 2008-9-21 02:14     标题: 联想ThinkPad X301 介绍及评测(2008.09.21)

本帖隐藏的内容需要回复才可以浏览


[ 本帖最后由 domingo 于 2010-3-6 16:38 编辑 ]

图片附件: 1.jpg (2008-9-21 02:14, 61.66 KB) / 下载次数 381
http://115.28.246.150:8989/attachment.php?aid=30209&k=e05a574061db6e0f6f33892769d8a64b&t=1732459177&sid=99UOdI



图片附件: 2.jpg (2008-9-21 02:21, 51.68 KB) / 下载次数 402
http://115.28.246.150:8989/attachment.php?aid=30210&k=963502eba68bb52d7bbd1f0330f16fc2&t=1732459177&sid=99UOdI



图片附件: 4.jpg (2008-9-21 02:21, 33.59 KB) / 下载次数 387
http://115.28.246.150:8989/attachment.php?aid=30211&k=e61b9982811802fc04bd3925ef763248&t=1732459177&sid=99UOdI



图片附件: 5.jpg (2008-9-21 02:21, 34.66 KB) / 下载次数 382
http://115.28.246.150:8989/attachment.php?aid=30212&k=efc50ccc4e107aaa0f8e4e946b7e4808&t=1732459177&sid=99UOdI



图片附件: 6.jpg (2008-9-21 02:21, 50.8 KB) / 下载次数 379
http://115.28.246.150:8989/attachment.php?aid=30213&k=cc59be023af85ccd97c8f23e37179b62&t=1732459177&sid=99UOdI



图片附件: 7.jpg (2008-9-21 02:21, 48.66 KB) / 下载次数 359
http://115.28.246.150:8989/attachment.php?aid=30214&k=447b6e7a7e8ff05d920f4537ae255cd2&t=1732459177&sid=99UOdI



图片附件: 8.jpg (2008-9-21 02:21, 84.42 KB) / 下载次数 353
http://115.28.246.150:8989/attachment.php?aid=30215&k=13de29c06f655f038be2eb1ada2da2a6&t=1732459177&sid=99UOdI

作者: domingo    时间: 2008-9-21 02:23

喜欢触摸板并抱怨ThinkPad X200系列中无触摸板的人们再也不会抱怨了,X301配有带滚动区域的相应尺寸触摸板.这些评论者考虑仅在输入时使用小红点,所以更喜欢它们位于触摸板之上,但对触摸板的检测发现这是有用处的,而且尺寸是合适的.



[ 本帖最后由 domingo 于 2008-9-21 02:24 编辑 ]

图片附件: 9.jpg (2008-9-21 02:24, 69.84 KB) / 下载次数 3463
http://115.28.246.150:8989/attachment.php?aid=30216&k=cc3b7c851a52a39d40641ea51f9813f8&t=1732459177&sid=99UOdI

作者: domingo    时间: 2008-9-21 02:26

在触摸板右侧是指纹识别器,这时很多商用笔记本所具有的特点.掌托区域同样很舒适,其表面配有橡胶涂层,因此手感和外观均让人满意.掌托处是平的,触摸起来像绸缎一样,手感很好.

性能和评测

ThinkPad X301 并不配有适合台式机的Quad Core(酷睿四核)处理器.便携笔记本是使用低电压处理器来节省电能并降低发热量.ThinkPad X301配有最新的因特尔1.40GHz酷睿2双核SU9400处理器.X300使用的是有因特尔为便携式笔记本设计的1.20GHz L7100处理器,但SU9400是其他品牌也将采用的处理器.看上去是更为标准.很明显.SU9400 45nm处理器是因特尔工程师设计的符合联想需求的处理器.
X301配备的SU9400处理器完全能够满足办公要求以及浏览网页灯相关工作,但度与3D应用或者其他复杂程序应对困难.因特尔集成显卡可以完场一些小型游戏任务,甚至在效果不全开的情况下完成半条命2游戏,不过,通常情况下,使用者更常用的是情况是收发邮件,网络浏览,办公,图片编辑等工作.换句话说,多数商业人员使用便携笔记本的目的是什么.



SSD存储器应用于提高整机性能已有段时间了,从按下开机键到Windows滚动条小时的启动时间是28秒.启动机器后开通无线网络连接,浏览器显示主页画面的时间是32秒.



让我们看一下几个benchmarks检测结果以便对X301的情况更加了解.

PCMark05是测量系统整体表现的检查方法,它测试处理器,硬盘,内存及操作系统的综合表现.你会注意到X301检测结果比X300高1000点,是MacBook Air的两倍.

PCMark05 benchmark 结果 (分数越高性能越好)

NotebookPCMark05 Score
Lenovo ThinkPad X301 (Intel Core 2 Duo SU9400 @ 1.40GHz, Intel 4500MHD)4,457 PCMarks
Lenovo ThinkPad X300 (Intel Core 2 Duo L7100 @ 1.20GHz, Intel X3100)3,467 PCMarks
Apple MacBook Air (1.6GHz Intel Core 2 Duo P7500, Intel X3100)
2,478 PCMarks
Sony VAIO NR (1.5GHz Intel Core 2 Duo T5250, Intel X3100)3,283 PCMarks
Sony VAIO TZ (1.20GHz Core 2 Duo U7600, Intel GMA 950)2,446 PCMarks
Lenovo ThinkPad X61 (2.0GHz Intel Core 2 Duo T7300, Intel X3100)4,153 PCMarks
Lenovo 3000 V200 (2.0GHz Intel Core 2 Duo T7300, Intel X3100)3,987 PCMarks
Lenovo T60 Widescreen (2.0GHz Intel T7200, ATI X1400 128MB)4,189 PCMarks
HP dv6000t (2.16GHz Intel T7400, NVIDA GeForce Go 7400)4,234 PCMarks
Fujitsu N6410 (1.66GHz Core Duo, ATI X1400)3,487 PCMarks
Sony VAIO SZ-110B in Speed Mode (Using Nvidia GeForce Go 7400)3,637 PCMarks
Asus V6J (1.86GHz Core Duo T2400, Nvidia Go 7400)3,646 PCMarks


[ 本帖最后由 domingo 于 2008-9-21 11:26 编辑 ]
作者: domingo    时间: 2008-9-21 02:27

ThinkPad X301 配有新型Intel 4500MHD 集成图形芯片. 由于CPU的提升,3DMark06得分同X300比较得到明显提升,超出X300  200分..The 3D performance actually gets quite a bump

3DMark06 结果比较(分数越高标明性能越好):
Notebook3DMark06 Score
Lenovo ThinkPad X301 (Intel Core 2 Duo SU9400 @ 1.40GHz, Intel 4500MHD)712 3DMarks
Lenovo ThinkPad X300 (Intel Core 2 Duo L7100 @ 1.20GHz, Intel X3100)475 3DMarks
Apple MacBook Air (1.6GHz Intel Core 2 Duo P7500, Intel X3100)
502 3DMarks
Sony VAIO NR (1.5GHz Intel Core 2 Duo T5250, Intel X3100)504 3DMarks
Toshiba Tecra M9 (2.20GHz Core 2 Duo T7500, NVIDIA Quadro NVS 130M 128MB)1,115 3DMarks
Sony VAIO TZ (1.20GHz Core 2 Duo U7600, Intel GMA 950)122 3DMarks
HP dv2500t (2.0GHz Intel Core 2 Duo T7300, NVIDIA GeForce Go 8400M GS 128MB)1,055 3DMarks
HP dv6000t (2.16 GHz Intel T7400, NVIDA GeForce Go 7400)827 3DMarks


电池
联想提供3芯和6芯锂电池.电池位于笔记本前部.
3芯电池更轻,续航时间为4.3小时,6芯电池重一些,续航时间为6.5小时. 也可同时选购3芯锂聚合托架电池,放置在光驱处,放置很简单.取下光驱螺丝即可,然后将光驱位电池放入.
(注意,由于无热切换功能,安装时需关机)

现对电池进行了检测,第一项检测结果如下:

DVD光驱: 开,但不使用
在此情况下,电池供电4小时50分钟.电池电量剩余6%,笔记本进入休眠状态.

更理想的环境下, 我们进行了如下测试:
屏幕: 7/15 bar

在典型工作状态下,7小时20分钟后电池电量剩余6%,进入休眠状态
注意,首先使用3芯电池,主电池随后,难以觉察到何时开始使用主电池.

加上光驱位电池时X301重量会增加几盎司.但这些重量往往是值得的.

[ 本帖最后由 domingo 于 2008-9-21 19:03 编辑 ]
作者: domingo    时间: 2008-9-21 02:27

屏幕
X301的13.3寸WXGA+matte(nono-glossy) 300nit LED屏是亮丽的.此屏幕效果将超出你的想象,可以舒适的浏览并排的多个窗口或者表格,并进行对比.

10.jpg 11.jpg

12.jpg 13.jpg

[ 本帖最后由 domingo 于 2008-9-21 02:30 编辑 ]

图片附件: 10.jpg (2008-9-21 02:30, 83.01 KB) / 下载次数 3702
http://115.28.246.150:8989/attachment.php?aid=30217&k=6bceedc2739a05e799e2de6ee3f37feb&t=1732459177&sid=99UOdI



图片附件: 11.jpg (2008-9-21 02:30, 63.3 KB) / 下载次数 3470
http://115.28.246.150:8989/attachment.php?aid=30218&k=4b87a0886aa5a6af32517dd238e03b96&t=1732459177&sid=99UOdI



图片附件: 12.jpg (2008-9-21 02:30, 75.58 KB) / 下载次数 3527
http://115.28.246.150:8989/attachment.php?aid=30219&k=46768cd4044554242360b3547a2378e5&t=1732459177&sid=99UOdI



图片附件: 13.jpg (2008-9-21 02:30, 59.97 KB) / 下载次数 3395
http://115.28.246.150:8989/attachment.php?aid=30220&k=3650c17991fd7e6e98912b104368c9de&t=1732459177&sid=99UOdI

作者: domingo    时间: 2008-9-21 02:31

发热和噪音.


人们对于便携式笔记本的担忧之一是其散热性.毕竟所有设备高度继承在较小的空间.为客服这些困难,联想采用了Intel Core 2 Duo 1.40GHz 低电压处理器,低的功率意味着低热量.对于X301来说.热量从不是问题,放在膝盖上使用时是很舒适的,掌托处从未感觉到热.

掌托和键盘处温度更低

机器底部微热.


位于机器后面左侧的风扇经常匀速运行.噪音并不明显,当周围环境嘈杂时,风扇的声音是听不到的.尽管在安静的环境下风扇的声音是能听到的.


译者注:图中温度为华氏温度.

[ 本帖最后由 domingo 于 2008-9-21 04:42 编辑 ]

图片附件: 1.jpg (2008-9-21 04:41, 89.89 KB) / 下载次数 3421
http://115.28.246.150:8989/attachment.php?aid=30222&k=8b80183efd065bc22c1d46c56ca75e66&t=1732459177&sid=99UOdI



图片附件: 2.jpg (2008-9-21 04:41, 68.36 KB) / 下载次数 3640
http://115.28.246.150:8989/attachment.php?aid=30223&k=3d21242c6145271813cf6eb8db1689c5&t=1732459177&sid=99UOdI

作者: domingo    时间: 2008-9-21 02:31

连接性和无线


ThinkPad X301配有如下系列连接设备和无线设备.



注意,其中无modem,如需要相关功能,需配置dongle modem extension.我们并没忘记这种内置设备,modem已经使用了多年.继承的WAN和WLAN使得在马路上的任何位置均可以连接网络,UWB是种移动无线技术,但你会发现在美国没有多少城市在使用.

音频设备

X301配有良好的音频设备及扬声器.对于一款超薄笔记本来说这让人震惊.ThinkPaD X61/X200在笔记本底部配有小的扬声器,因此X301配置的音频设备在X系列中是一个飞跃.使用X301的管理人员再也不需要携带外部音频设备以便夜间在酒店中观看DVD





[ 本帖最后由 domingo 于 2008-9-21 03:06 编辑 ]

图片附件: 3.jpg (2008-9-21 03:06, 65.78 KB) / 下载次数 3421
http://115.28.246.150:8989/attachment.php?aid=30221&k=178f2d40798e142dfb2173f2e926bf94&t=1732459177&sid=99UOdI

作者: domingo    时间: 2008-9-21 02:31

总结

ThinkPad X301继承了X300的特点,相比X300,X301增加的亮点是Intel SU9400处理器和DisplayPort输出功能.同样,尽管售价400美元, 128GB SSD硬盘仍然是可选配的,如果你正在考虑购买X301,价格或许并不是你所关心的.3,000美元便携笔记本市场属于特定群体的消费者,对于很多商业人士来说,便携笔记本和黑莓手机是它们工作的生命线,也是赚钱的工具.所以,如果你是一名需要配备性能可靠便携笔记本的跨国高级管理人员,X301的价格是适合你的,其纤薄的特点完全满足你的需要.


优点:
厚度1英寸以内,迄今为止最薄的ThinkPad笔记本.
重量轻,方便背包中携带.
质量过硬,手感佳,附带良好设计的触摸板
如果纤薄的笔记本中内置光驱是非常少见的.
性能优于X300.适合商业领域.SSD硬盘良好的启动速度.
高亮屏幕,浏览舒适.


缺点

无SD读卡器

无扩展坞,仅配USB接口

无PC,ExpressCard卡槽

售价2.500美元起,超出很多人的承受能力.




[ 本帖最后由 domingo 于 2008-9-21 02:54 编辑 ]
作者: domingo    时间: 2008-9-21 02:32

附:原文内容

http://www.notebookreview.com/default.asp?newsID=4603

Lenovo ThinkPad X301 Review
Submitted by Andrew on Thursday, September 18, 2008
Email   Discuss (15 replies)   Print




Click here to Buy Direct from Lenovo.com


by Andrew Baxter

While cheap netbooks are all the rage these days, just a few months ago the attention was being lavished on expensive, high-end thin and light notebooks.  Namely the 13.3" screen Apple MacBook Air and Lenovo ThinkPad X300.  Fast forward several months and several hundred stock market points lower and expensive laptops don't seem quite as appealing, which might be why the recent release of the Lenovo ThinkPad X301 was mostly a silent entrance on stage left.  Still, if you're a CEO that happens to still have a job these days and you like to have the latest and greatest in ultra-mobile computing technology, cost not being a concern, the ThinkPad X301 could be a fit.

Buying Choices for the Lenovo ThinkPad X301 with integrated graphics
--------------------------------------------------------------------------------
Lenovo | $2,605.00


--------------------------------------------------------------------------------



Overview



Before going too far we'll preface this review by saying it's going to sound a whole lot like the X300 review we did back in February.  That's simply because the new X301 is just a refresh to the X300, and design wise everything remains the same.  Internally you have a new Montevina platform Intel chipset and Lenovo also saw fit to add a DisplayPort interface this time around, but other than that we're talking carbon copy of the X300 here.  Which isn't a bad thing by any means, since the X300 won high praise.

The review unit ThinkPad X301 we have comes with the following specs:

Processor: 1.40GHz Intel Core 2 Duo SU9400 (1.40GHz, 3MB L2 cache, 800Mhz FSB)
Graphics: Intel Graphics Media Accelerator 4500MHD
Screen: 13.3-inch WXGA+ (1440 x 900, 300 nit) LED backlit display
Memory: 2GB (up to 4GB configurable)
Storage: 64GB SSD (up to 128GB SSD optional)
Optical Drive: Ultra-thin DVD Burner
Wireless and Communications: Intel Wi-Fi Link 5100 (802.11 a/b/g/n wi-fi), BlueTooth 2.0 EDR (Verizon or AT&T 3G wireless available as option, not included)
Battery: 6-cell Li-Polymer extended life battery (3-cell Li-Polymer battery available and multi-bay extended life 3-cell battery)
Ports: 3 USB 2.0 ports, Monitor out port, AC adapter, headphone/line-out, microphone/line-in, Gigabit Ethernet
Dimensions: 12.4" x 9.1" x 0.73" - 0.92"
Weight: from 2.93lbs with 3-cell battery and no optical drive to 3.32lbs with 6-cell battery and DVD Burner in
Port Replicator: Via USB
Input: Full sized keyboard, trackpoint navigation, touchpad, fingerprint reader
Operating System: Windows XP Professional (Windows Vista available in various flavors)
Other Features: Integrated web camera
Price: About $3,000
Warranty: 1-year
Notice the dimensions of the X301, it is well under 1-inch thick, meaning it's easy to slip into a bag for carrying purposes. The light weight makes that doubly the case.

Build and Design

The ThinkPad X301 is as solid as you get in terms of build quality. The internal chassis and roll cage use an advanced carbon-fiber / glass-fiber material that provides both strength and light weight. The case material is made of magnesium, press as hard as you want anywhere on the body of the notebook and it will not flex. Like all ThinkPads, the X301 is designed for accidental abuse and drops. The screen is held down using a latch mechanism with button release, something that's more and more rare these days with notebooks as most other manufacturers move to a latchless design.



The build quality leaves no doubts and the X301 design also makes it standout. That said, there's nothing crazy going on here, the black boxy look of a ThinkPad is still very much so intact. However, the glossy bottom bezel area and the cool light illumination on the ThinkVantage button and power button add a nice touch, plus add to the usability. The speakers located on the front corners of the notebook add a nice design accent. The heat vent grills are painted black to blend with the rest of the notebook design, you don't see any copper colored internals. The screen is centered for those hung up on symmetry. And last and probably most important, the X301 is very thin, a cool look by de facto.



The weight of the X301 with a 3-cell battery and weight saver can get you under the magic 3lb mark at 2.93lbs.  If you're going to be unplugged for any duration of time you'll probably want the 6-cell battery, which bumps the weight to 3.32lbs.  Still a very comfortable weight to be carrying.


Input and Output Ports

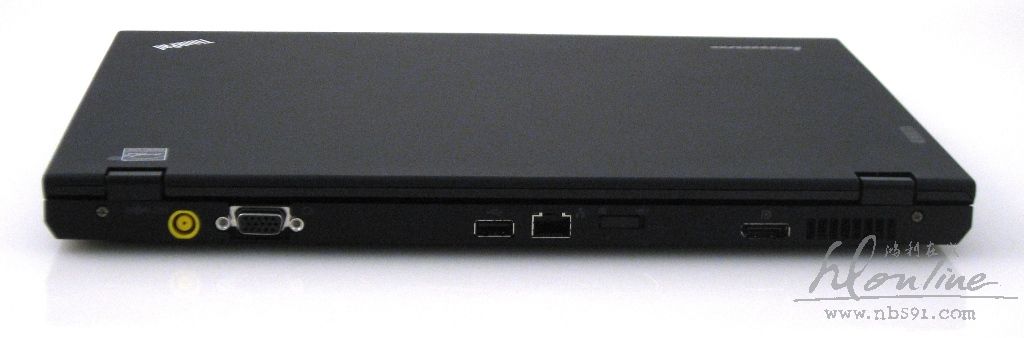

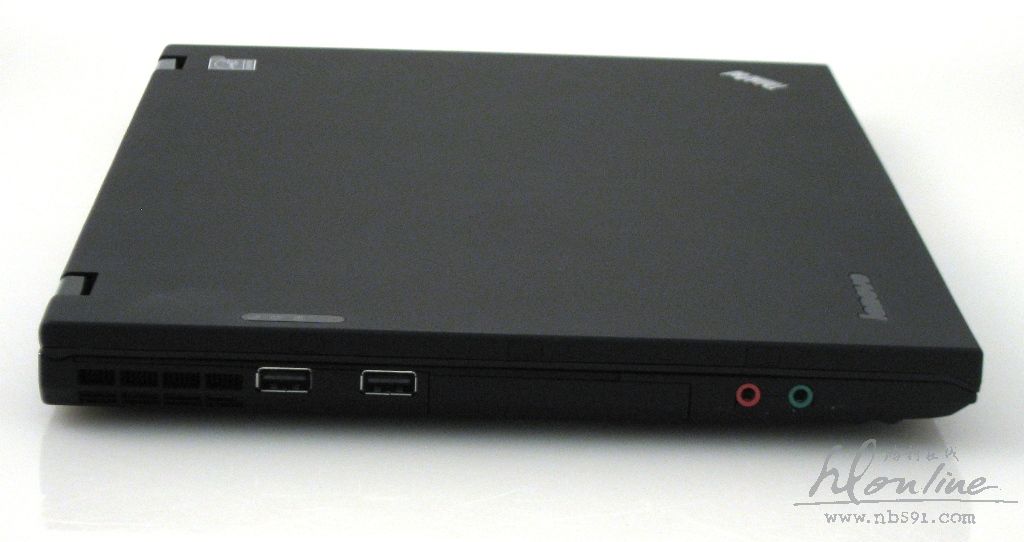

The ThinkPad engineers have done a great job of squeezing in as many useful ports in a thin design that they can.  Indeed, the X301 adds an extra port to the mix over the X300 in the form of the DisplayPort located on the back.

Here's what's included:

3 USB 2.0 ports (2 on the left, 1 on the back)
Gigabit Ethernet (back)
Audio out, microphone in (left side)
Monitor out (back)
DisplayPort (back)




Three USB ports is very generous for this size and dimension laptop. It would have been very nice to have a media card reader slot, especially an SDHC compatible one so that you could quickly boost storage capacity.

Keyboard and Touchpad

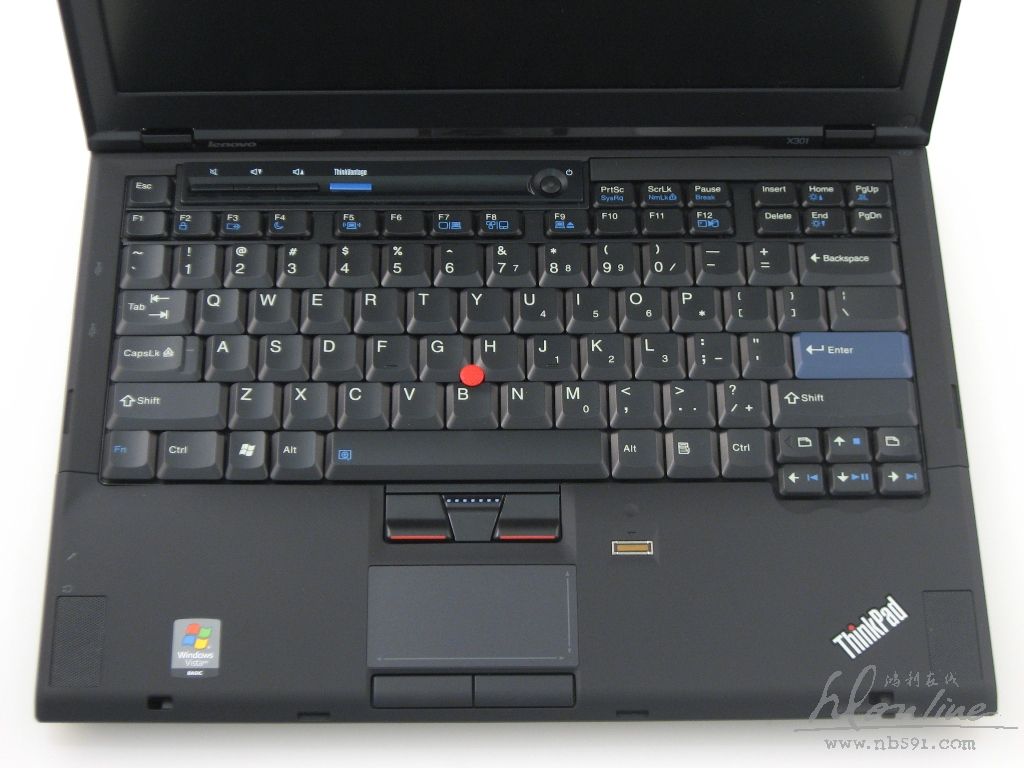

The full-sized keyboard on the ThinkPad X301 remains the same as that on the X300.  It has no flex, every key feels individual, and the key travel distance is perfect.  Lenovo has added a matte finish to the keys so that they don't wear and get all shiny over time. For added usability the Caps Lock has a green light indicator and the power button a white light to show power is on.



People that like a touchpad and complain about it being missing on the ThinkPad X200-series have nothing to complain about here, a decent sized touchpad with scrolling areas is in place on the X301. This reviewer actually prefers the TrackPoint pointing stick over the touchpad and exclusively uses that method of input, but in testing out the touchpad it was found to be responsive and the size adequate.



Just to the right of the touchpad is a fingerprint reader, a feature common to many business notebooks. The palm rest area is especially comfortable, it has a rubberized paint finish so it both feels and looks nice. It's very smooth and pleasing to the touch, almost satin in feel.

Performance and Benchmarks

The ThinkPad X301 is not built to compete with your Quad Core processor loaded desktop. The name of the game with thin travel notebooks is using a low voltage processor to conserve power and reduce heat build-up. The ThinkPad X301 uses a newly released Intel 1.40GHz Core 2 Duo SU9400 processor from the Montevina family chipset.  The X300 used a 1.20GHz L7100 chip especially designed by Intel for that notebook (so Lenovo claimed), but the SU9400 appears to be a more standard processor that other manufacturers might use.  Apparently the 45nm fabrication process the SU9400 was developed on shrank things enough to mitigate Lenovo needing any further "shrinking tricks" by Intel engineers.

The SU9400 processor inside the X301 is more than capable of running Office applications and performing any general web related tasks, but will not serve well for 3D graphics applications or any heavy duty rendering tasks. The Intel integrated graphics will allow you to play a few light games, maybe even Half Life 2 on low settings, but in general you'll want to stick to e-mail, web browsing, Office and photo editing tasks. In other words, what most normal business people use a laptop for.

The SSD storage really goes a long way to improving certain aspects of performance, the all important boot-up time is a fast 28-seconds from the push of the power button to the Windows hourglass disappearing. It only took 32 seconds to boot-up, have the wireless connection enabled, and a browser window open to its homepage.

Let's take a look at a couple of basic benchmarks so you can get an idea of how the X301 stacks up.

PCMark05 is a benchmark that measures the overall system performance, so it considers the processor, hard drive, memory and OS as part of the mix.  You'll notice in the results the X301 takes a 1,000 point leap over the previous score of the X300, and the MacBook Air score is close to doubled:

PCMark05 benchmark results (higher scores are better)

Notebook PCMark05 Score
Lenovo ThinkPad X301 (Intel Core 2 Duo SU9400 @ 1.40GHz, Intel 4500MHD) 4,457 PCMarks
Lenovo ThinkPad X300 (Intel Core 2 Duo L7100 @ 1.20GHz, Intel X3100) 3,467 PCMarks
Apple MacBook Air (1.6GHz Intel Core 2 Duo P7500, Intel X3100)
2,478 PCMarks

Sony VAIO NR (1.5GHz Intel Core 2 Duo T5250, Intel X3100) 3,283 PCMarks
Sony VAIO TZ (1.20GHz Core 2 Duo U7600, Intel GMA 950) 2,446 PCMarks

Lenovo ThinkPad X61 (2.0GHz Intel Core 2 Duo T7300, Intel X3100) 4,153 PCMarks
Lenovo 3000 V200 (2.0GHz Intel Core 2 Duo T7300, Intel X3100) 3,987 PCMarks
Lenovo T60 Widescreen (2.0GHz Intel T7200, ATI X1400 128MB) 4,189 PCMarks
HP dv6000t (2.16GHz Intel T7400, NVIDA GeForce Go 7400) 4,234 PCMarks
Fujitsu N6410 (1.66GHz Core Duo, ATI X1400) 3,487 PCMarks
Sony VAIO SZ-110B in Speed Mode (Using Nvidia GeForce Go 7400) 3,637 PCMarks
Asus V6J (1.86GHz Core Duo T2400, Nvidia Go 7400) 3,646 PCMarks




The X301 has the new Intel 4500MHD integrated graphics on board. The 3D performance actually gets quite a bump from the previous X300 thanks to this upgrade, over 200 points higher in 3DMark06:

3DMark06 comparison results (higher score meens better performance):

Notebook 3DMark06 Score
Lenovo ThinkPad X301 (Intel Core 2 Duo SU9400 @ 1.40GHz, Intel 4500MHD) 712 3DMarks
Lenovo ThinkPad X300 (Intel Core 2 Duo L7100 @ 1.20GHz, Intel X3100) 475 3DMarks
Apple MacBook Air (1.6GHz Intel Core 2 Duo P7500, Intel X3100)
502 3DMarks

Sony VAIO NR (1.5GHz Intel Core 2 Duo T5250, Intel X3100) 504 3DMarks
Toshiba Tecra M9 (2.20GHz Core 2 Duo T7500, NVIDIA Quadro NVS 130M 128MB) 1,115 3DMarks
Sony VAIO TZ (1.20GHz Core 2 Duo U7600, Intel GMA 950) 122 3DMarks
HP dv2500t (2.0GHz Intel Core 2 Duo T7300, NVIDIA GeForce Go 8400M GS 128MB) 1,055 3DMarks
HP dv6000t (2.16 GHz Intel T7400, NVIDA GeForce Go 7400) 827 3DMarks




Battery

Lenovo offers the choice of either a 3-cell or 6-cell Lithium-Polymer battery that rests at the front of the notebook. The 3-cell is lighter and has a quoted life of up to 4.3 hours while the 6-cell is heavier and has a quoted life of up to 6.5 hours. You can also get a 3-cell Lithium-Polymer option bay battery, to install you just pull out the DVD Burner, which is easily done by removing one screw, and then insert the spare battery instead (note, you have to shut down to do that, there is no hot swap option).

We did a couple of battery tests. In the first test we had the following settings:

Battery: 6-cell Li-Ion extended life battery
Radios: Wi-Fi on
Usage: Idling with screen on
Vista Power Setting: Power Saver
Screen brightness: 7 / 15 bars
DVD Burner: On but never used
Under this non-realistic style usage we achieved 4 hours and 50 minutes of battery life, at which time there was 6% battery left and the X301 went into hibernation.

For a more realistic test, we used the following settings:

Battery: 6-cell Li-Ion extended life battery + 3-cell Media Bay battery
Radios: all on
Usage: used for web surfing, working on review, downloading and installing software
Vista Power Setting: Power Saver
Screen: 7/15 bar
With this typical work scenario setting the battery reached 6% remaining and went into hibernate at 7 hours and 12 minutes. Note that the 3-cell battery is used up first and the main battery is then switched to seamlessly, you won't even notice it happen.  The X301 does weigh a few ounces more when you put the 3-cell media bay battery in, but the extra weight is worth the battery life if that's what you value most from a laptop.

Screen

The 13.3" WXGA+ matte (non-glossy) screen on the X301 is nice and bright, with its 300 nit LED backlit spec. The screen real estate you get with WXGA+ on the 13.3" form factor is actually more than you'd expect, you can quite comfortably fit a couple of web browser or spreadsheet windows open next to each other and compare and contrast things.







The viewing angles are good, especially the horizontal viewing angles. Thanks in part to the bright screen; it is very easy to view things even if you are almost totally off to the side.

Heat and Noise

One major concern with a laptop that's extremely thin is that it will overheat due to all of the components being crammed together. To combat this issue Lenovo went with an Intel Core 2 Duo 1.40GHz low voltage processor, less power draw means less heat. Heat never became an issue with the X301, it was completely comfortable to use in the lap and the palm rests never got warm.


Temperatures on the palm rest and keyboard area remained low (view large image)



Temperatures on the bottom only got mildly warm (view large image)

The fan located on the back left side of the X301 ran fairly frequently and at a constant rate. It wasn't particularly loud or annoying, with ambient room noise it was hard to hear the fan at all. Though in a more quiet room the fan is certainly audible.

Connectivity and Wireless

The ThinkPad X301 has a great array of connectivity and wireless offerings. Included in the mix are:

WLAN Wi-Fi 802.11 a/b/g/n
WAN (Verizon or AT&T 3G services)
UWB (optional)
GPS (optional, available only with Verizon card)
Ethernet LAN port
BlueTooth
Notice there is no modem included, you'll have to use a dongle modem extension if you want that. We don't miss this port being built-in as it's been years since we had to use a modem.  The integrated WAN and WLAN will combine to keep you connected just about anywhere on the road, the UWB is an option for roaming wireless but you won't find many cities in the U.S. that offer this.

Audio

The X301 actually has good sound and speakers that are well positioned. For an ultra thin notebook, that's astounding. The ThinkPad X61/X200 contain a puny speaker on the bottom of the notebook, so this is something of a quantum leap for audio quality on the X-series. ThinkPad X301 equipped executives will never have to tote their external speakers to watch DVDs by night in their hotel rooms again.



Conclusion

The ThinkPad X301 takes the original X300 and adds a nice performance jump with the new Intel SU9400 Montevina family processor plus adds a DisplayPort to the mix.  Also available now is a 128GB SSD option, though this costs $400 more than the standard 64-bit SSD, if you're buying the X301 price probably isn't too much of a concern for you.  The $3,000 laptop market is certainly an exclusive group of buyers, but for many business people their laptop and Blackberry are a lifeline to getting work and deals done, and thereby money made.  So at the end of the day if you're a globe trotting executive that needs a reliable and top of the line work tool, the cost of the X301 can be jusitifed and this slim form factor machine can serve you well.

Pros

Under 1-inch thick, the thinnest ThinkPad ever
Light weight and easy for carrying around in a bag
Superb build quality and feel, nice design touches added

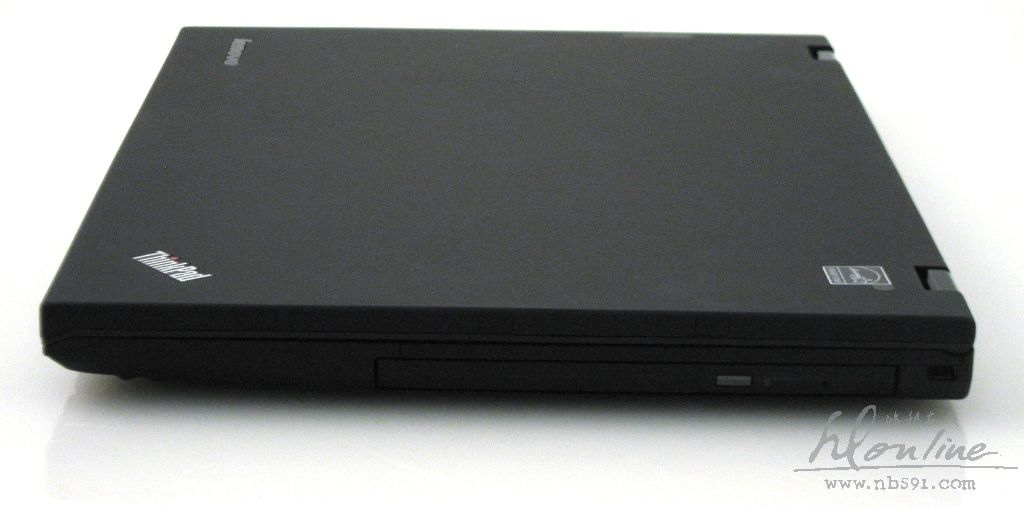

Built-in optical drive for such a thin notebook is a rarity
Improved performance over the X300.  Great for normal business tasks, very fast bootup with the SSD
Very bright screen for easy viewing
Cons

No SD media card reader
No expansion dock capability, USB based port replicator only
No ExpressCard or PC card slot
Starting price of $2,500 is out of range for many people
作者: shenwhite    时间: 2008-9-21 07:07

触摸板的箭头有什么作用
作者: domingo    时间: 2008-9-21 07:45

原帖由 shenwhite 于 2008-9-21 07:07 发表
触摸板的箭头有什么作用


不太了解.

猜测作图时用的吧.
作者: 章丘雪铁龙    时间: 2008-9-21 08:08

版主真辛苦,这么晚了还工作,支持.
作者: ehappysun    时间: 2008-9-21 08:26

原帖由 shenwhite 于 2008-9-21 07:07 发表
触摸板的箭头有什么作用


触摸板的箭头是用于纵向和横向滚动条，在触摸板的右侧和下侧区域可以完成纵向和横向的屏幕滚动，不过得装上UltraNav Wizard驱动程序。从以前的T30 /T4X开始就有了这个功能，只是没有箭头标示而已。。。

[ 本帖最后由 ehappysun 于 2008-9-21 08:42 编辑 ]

图片附件: 20080921_6beef7c45d378f028df6f1sh1yrie8Bu.jpg (2008-9-21 08:28, 43.89 KB) / 下载次数 2626
http://115.28.246.150:8989/attachment.php?aid=30241&k=05ed314a5ef6aa459e7e4bbc4f272b34&t=1732459177&sid=99UOdI

作者: domingo    时间: 2008-9-21 09:15

原帖由 ehappysun 于 2008-9-21 08:26 发表


触摸板的箭头是用于纵向和横向滚动条，在触摸板的右侧和下侧区域可以完成纵向和横向的屏幕滚动，不过得装上UltraNav Wizard驱动程序。从以前的T30 /T4X开始就有了这个功能，只是没有箭头标示而已。。。


感谢介绍.
又增加了了解.

寒香使用经验很丰富啊
作者: ehappysun    时间: 2008-9-21 09:38

多哥过奖呀，我以前也见过这方面的介绍，没注意，是自己装驱动的时候偶然发现还有这样的功能。。。
作者: bluton    时间: 2008-9-21 10:08

好机器啊,呵呵
作者: sunnylau_80    时间: 2008-9-21 10:34

唉，什么时候能买得起阿
作者: akun    时间: 2008-9-21 10:44

比T61 T400更像thinkpad
比X61 X200更加完美
就是太贵了
作者: mingrui_xidian    时间: 2008-9-21 10:54

辛苦啊！！！
作者: I小B黑M    时间: 2008-9-21 11:23

哈哈，我的最爱终于来了
作者: domingo    时间: 2008-9-21 11:25

定位高端啊.
看那口气.在米国.工薪阶层也不是都有承受能力买这高端机
作者: mickeylm    时间: 2008-9-21 11:44

漂亮啊，就是买不起
作者: wangxh1985    时间: 2008-9-21 12:30

不过也可以用鼠标中键加上小红点滚动，很好用的
作者: shoufeng    时间: 2008-9-21 14:48

多版主辛苦了，学习了
作者: sex5678    时间: 2008-9-21 16:37

价格太猛了啊，崩溃了
作者: I小B黑M    时间: 2008-9-21 17:06

中英文对照啊～
作者: mingrui_xidian    时间: 2008-9-21 19:43

机器太诱人了！！！
作者: gyuxuan    时间: 2008-9-21 20:43

好贵好贵啊，一般人舍不得用啊
作者: bluton    时间: 2008-9-21 20:55

中英文对照,不错,就是太贵
作者: ssmiless    时间: 2008-9-21 23:06

先谢谢翻译呀，慢慢看，想买x200。
作者: wdzhi    时间: 2008-9-22 09:08

流口水ing，等降价
作者: 布啦    时间: 2008-9-22 11:01

原帖由 shenwhite 于 2008-9-21 07:07 发表
触摸板的箭头有什么作用


当有滚动条的时候,双击后按住托拽,直接控制滚动条....
HP的机器上也有.
作者: luckyjun    时间: 2008-9-22 20:15

不错！支持原创！
作者: shenwhite    时间: 2008-9-22 22:47

原来是这作用，科技啊，就是不错
作者: wdzhi    时间: 2008-9-23 11:27

原帖由 liqing15397 于 2008-9-23 11:23 发表
啥时候有二手哦;

你想的太远了
作者: 156403994    时间: 2008-9-23 11:31

估计也只能等到若干年后买二手的了
作者: netbee    时间: 2008-9-23 18:51

原帖由 shenwhite 于 2008-9-21 07:07 发表
触摸板的箭头有什么作用

上下和左右滚动用的
作者: uuwolf    时间: 2008-9-26 11:47

看屏幕哈，对称了耶 见惯了不对称的屏幕感觉有点不习惯
作者: domingo    时间: 2008-9-26 12:37

原帖由 shenwhite 于 2008-9-21 07:07 发表
触摸板的箭头有什么作用


滚动屏幕用的.
T61触摸板上没有箭头.但同样有此功能.

你可以试一试
作者: pcvak    时间: 2008-9-26 13:35

原帖由 shenwhite 于 2008-9-21 07:07 发表
触摸板的箭头有什么作用
卷轴用的。以前触摸板有这功能，只是没印箭头罢了。
作者: hansq    时间: 2008-10-3 17:30

看不懂英文的内容。小看 楼主了
作者: sun9999    时间: 2008-11-11 22:41

过两年，等这个的二手机。
作者: mingrui_xidian    时间: 2008-11-12 09:45

这个机器是我的下一个目标
作者: distong    时间: 2008-12-23 16:30     标题: 欢迎加入ThinkPad交流②群：63819064

欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064欢迎加入ThinkPad交流②群：63819064
作者: domingo    时间: 2008-12-24 03:14

原帖由 mingrui_xidian 于 2008-11-12 09:45 发表
这个机器是我的下一个目标



也是很多人的下一个目标
作者: Bayer    时间: 2009-1-12 17:11

喇叭容易进灰
作者: Mr.lao    时间: 2009-1-15 17:30

听说301还不错的
作者: 仁民鲮    时间: 2009-2-4 22:00     标题: 你知道什么是网赚吗？

提示: 作者被禁止或删除 内容自动屏蔽
作者: domingo    时间: 2009-2-5 07:22

原帖由 Mr.lao 于 2009-1-15 17:30 发表
听说301还不错的



相当好了.
作者: penguin    时间: 2009-2-17 19:46

我突然有个想法，看300的键盘设计，就知道联想不知不知道T系列上那银灰色的电源键有多么难看，但是，嘿嘿~~
作者: jy03033421    时间: 2009-3-1 14:40

这个机子真的很轻。。
作者: ZXH999ZXH    时间: 2009-4-9 06:06

好贴，买不起！！
作者: longwt    时间: 2009-4-9 15:09

原帖由 ZXH999ZXH 于 2009-4-9 06:06 发表
好贴，买不起！！


是好机，买不起
作者: dwy8816    时间: 2009-4-16 09:43

贵啊。。。。
作者: longwt    时间: 2009-4-24 16:45

好机，再次欣赏一下
作者: 银翼之扉    时间: 2009-4-28 19:11

提示: 作者被禁止或删除 内容自动屏蔽
作者: dnyh    时间: 2009-5-6 02:19

W700是俺下一个目标
作者: qq903529463    时间: 2009-6-15 18:16     标题: 绝对好消息！移动提供免费139邮箱2G硬盘，每月送30条短信20条彩信！

提示: 作者被禁止或删除 内容自动屏蔽
作者: chuangsen    时间: 2009-7-20 15:43

中英文对照,不错,就是太贵
作者: 刘易斯    时间: 2009-9-10 22:23

老do你自己什么时候搞个啊?
作者: 二修    时间: 2009-10-13 20:49

确实是好机器，不过目前还只能看看
作者: chrify    时间: 2009-10-28 21:51

奋斗的目标了。。。。。。。。。。
作者: chrify    时间: 2009-10-28 21:51

奋斗的目标了。。。。。。。。。。
作者: 星昕婧    时间: 2010-1-1 05:20

提示: 作者被禁止或删除 内容自动屏蔽
作者: 绍珏飞    时间: 2010-1-18 15:36

提示: 作者被禁止或删除 内容自动屏蔽
作者: superachao    时间: 2010-1-19 09:36

想买一台x301，呵呵
作者: domingo    时间: 2010-2-22 23:52

配上6芯电池很爽
作者: sunboy30860    时间: 2010-3-14 22:48

看看  这个看起来不错
作者: sunboy30860    时间: 2010-3-14 22:50

看看 这个看起来不错
作者: HC竖笑    时间: 2010-3-16 19:43

提示: 作者被禁止或删除 内容自动屏蔽
作者: 卡尼1990    时间: 2010-4-1 19:45     标题: 回复 1# domingo 的帖子

看看
期待中啊
作者: ansenliu    时间: 2010-4-8 09:04

最近在关注这个机器看看
作者: pocus    时间: 2010-4-8 16:49

chm, pdf, zip, rar, tar, gz, bzip2, gif, jpg, jpeg, png, torrent
作者: pocus    时间: 2010-4-8 16:49

最讨厌去要恢复的
作者: 自己的天    时间: 2010-4-8 17:17

触摸板的箭头有什么作用
作者: 煦臣浩    时间: 2010-4-10 18:59

提示: 作者被禁止或删除 内容自动屏蔽
作者: vip2046    时间: 2010-5-28 13:02

:) :) :) :) :)
作者: chnldc    时间: 2010-5-28 17:43

专业，顶一个！
作者: domingo    时间: 2010-5-28 17:51

原帖由 刘易斯 于 2009-9-10 22:23 发表
老do你自己什么时候搞个啊?

下个本子考虑X200(T),X201(T)或者X60
作者: charlene2705    时间: 2010-5-28 23:54

就是太贵了
作者: seven714    时间: 2010-5-29 15:24

欣赏！
作者: markpc    时间: 2010-5-30 22:56

wsfsdfsadfasdf
作者: robybaggio18    时间: 2010-6-1 10:20

好详细 就是不知道我的回复能不能成功
作者: weiting    时间: 2010-8-1 03:12

這机種真不是普通的貴!
作者: carefreej    时间: 2010-8-9 09:46

好好学习下
作者: y112233    时间: 2010-8-22 11:09

感谢版主分享，心情愉快！
作者: hxj365    时间: 2010-8-22 11:50

回 复 看 帖
作者: vagcat    时间: 2010-9-6 12:25

回复才能看帖
看看
作者: kenypet    时间: 2010-9-6 12:50

路过顶贴!!!!!
作者: sjh    时间: 2010-9-15 16:42

好期待哦
作者: jery086    时间: 2010-9-15 16:56

呵呵！还将就哦~
作者: woshinibai    时间: 2010-9-21 06:12

不厚道 还要回复才能浏览
作者: 19820208    时间: 2010-9-21 08:06

ding ni
11
作者: 270895221    时间: 2010-9-22 22:06

听说此物停产了，悲剧啊，等我有能力的买的时候再停产不迟啊
作者: wylc    时间: 2010-9-23 10:42

........还搞这事
作者: kavin51    时间: 2010-9-23 19:17

还是比较看重此款式的，
作者: 陶瓷白使者    时间: 2010-9-24 21:43

我最爱 X301 哈哈
作者: aaass    时间: 2010-9-25 20:06

谢谢发帖，回复看看
作者: newtimes000    时间: 2010-9-26 15:39

看看版主大人的神贴~
作者: hdwwt007    时间: 2010-9-26 17:22

这款确很经典的



欢迎光临 鸿利在线|北京Thinkpad水货|IBM水货|Thinkpad笔记本|Thinkpad全球购|Thinkpad美行|Thinkpad水货笔记本|Thinkpad港行笔记本|Thinkpad T14|X13|P15|P17|P1隐士| X1 Carbon 9代 |T14S|2021款X1 Carbon|X1 隐士|Thinkpad非官方论坛|Thinkpad工作站|Thinkpad笔记本论坛|Thinkpad水货 (http://115.28.246.150:8989/) Powered by Discuz! 7.2
